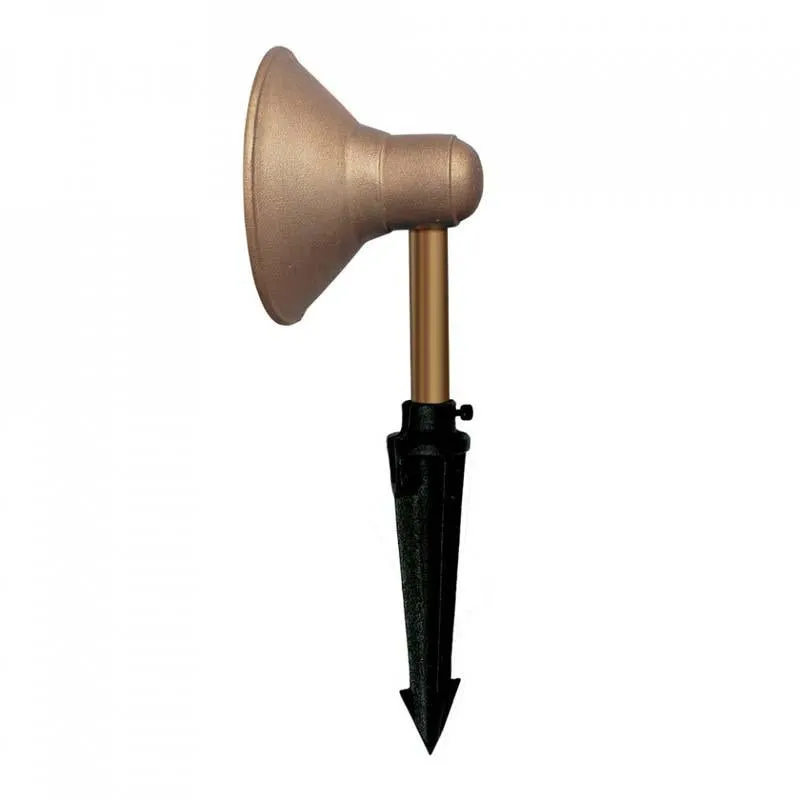

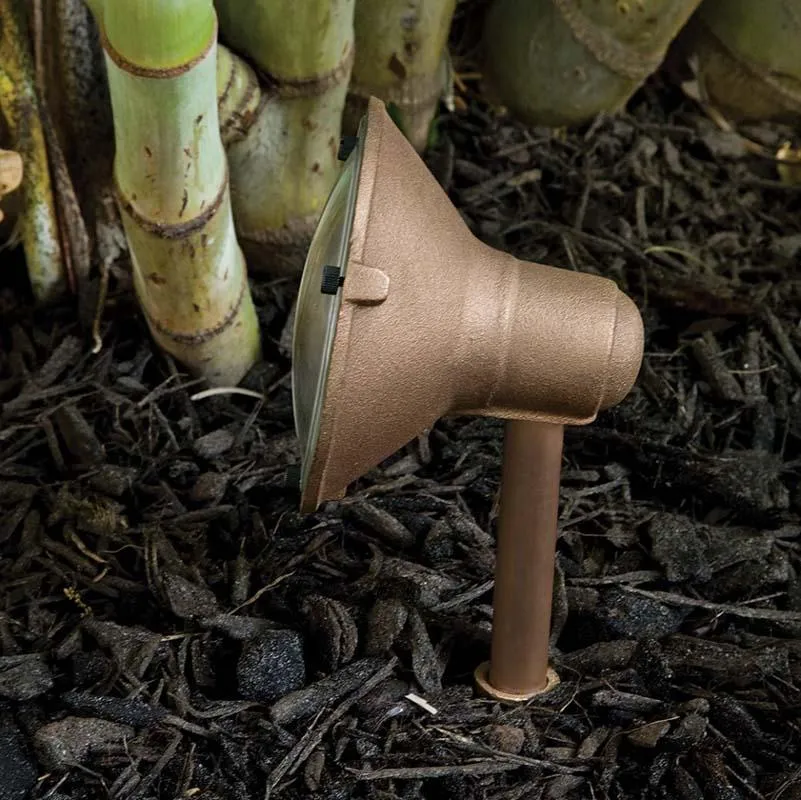

This compact rugged solid bronze wall wash features a convex borosilicate lens. The CWW1CB can be converted to LED using the CSWLED2 module.

The LED Wall Wash (CWW1LED2) features an Integrated , replaceable LED module.

Suitable for illuminating walls and other broad area applications

• Solid bronze shroud and body
• Solid Eurometal Stake
• Pre-wired with 25' #16-2 tin-coated No-Ox® marine grade wire
• High-temp socket with solid nickel contacts
• Spider Splice® ready

• Dimensions and Weight: Shroud, Base, & Stem: 7" tall x 4.25" wide
  • Stake: 8.5"
  • Weight: 5.2 lbs
• Lamp Specifications for CWW1CB: Lamp: 12V S8 Wedge Base (35W max.) Lamp included (25W)
• LED specifications for CWW1LED2:
  • LED Module CSWLED2: 2,758°K Color Temp.
  • Input voltage: 10 to 24V, AC or DC
  • Power: 4.33 watts, Power Factor: .9 Volt Amps: 4.81
  • Lumen output: 147.6 lm
  • CRI:82
  • FCC compliant for EMI interference

• Listing:a All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
• Construction:
  • Shroud: Solid Sand-Cast Bronze
  • Stake: Solid Eurometal
  • Stem: 4a Heavy duty copper (unthreaded end to secure in stake with set screws.) (0.115a wall thickness)
  • Lens: Convex borosilicate with silicon gasket to prevent water intrusion
  • Socket Assembly: High-temperature composite S8 socket rated to 220°C.
  • Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16-2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
